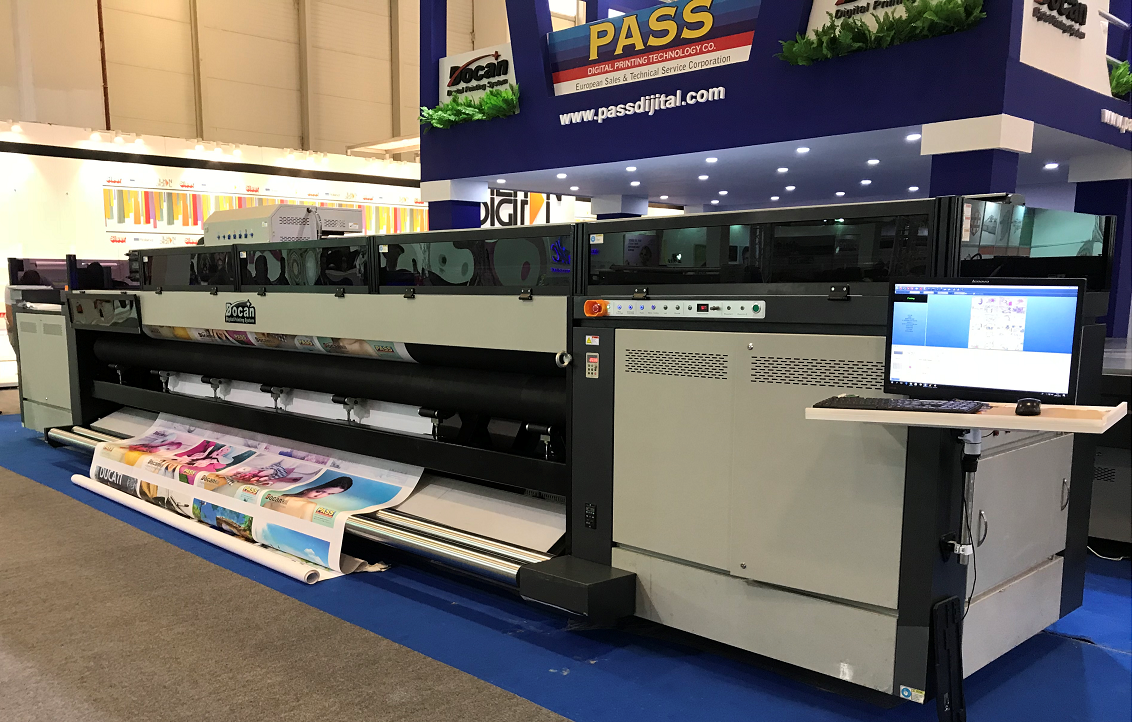

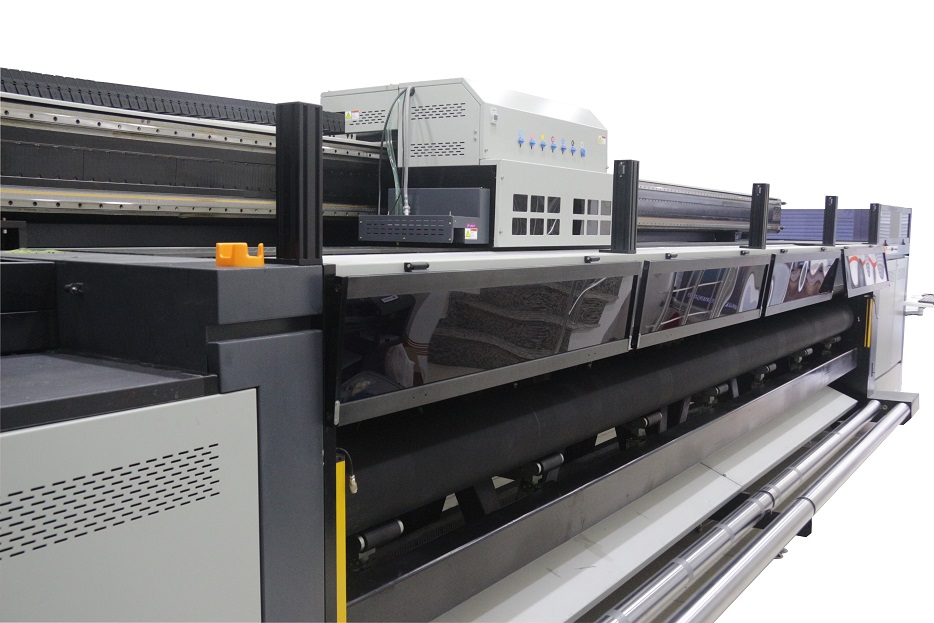

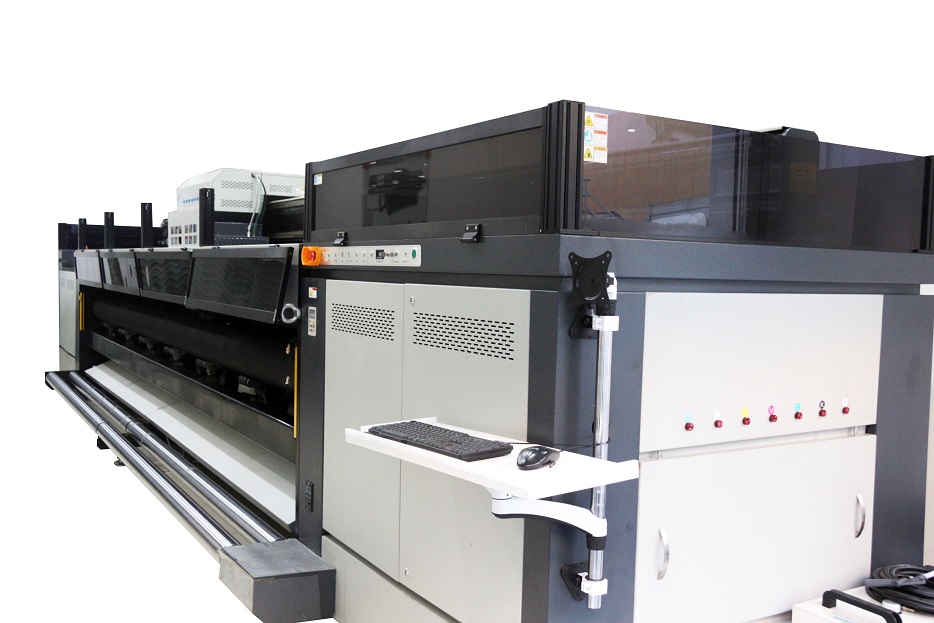

DOCAN UV Roll-to-Roll Printer R5200




R5200 provides the widest UV digital printing possibility on the market. With its contactless working Magnetic Head Transport System it handles high quality printings fastly on 520 cm wide flexible materials which is ideal for building cladding, backstage decor, etc. It can print narrower medias accurately as well. Its technical features, capabilities and well structured case allow it to full-time work when high performance is a must.



Using the UV ink it can produce excellent images on various materials like banners, vinyl, mesh, one-way vision, foil, backlit fabric, etc. The ink is environment friendly. Also, it offers various ways of printing the white when printing material is in color and allows to print the three-layer spot colors which means printing color-white-color at one time.



The printhead options are Konica Minolta 1024i 6-13pL, Ricoh Gen5 7pL and Kyocera KJ4A 3,5pL . The printing colors are Lc Lm Y M C K , White and Varnish are optionals!

DOCAN UV Roll-to-Roll Printer R5200




VARIABLE COLOR ALTERNATIVES





COLOR CONFIGURATIONS ADVANTAGES
   4 color inks print on colored or white substrates perfectly.
   Transparent and colored substrates are printed directly and at high quality.
 Highly bright and vibrant colors are displayed thanks to the white layer
 printed as the last layer under the image.
   4 color inks print on colored and transparent medias with white and varnished
 applications in vibrant, eye-catching and bright tones and last longer.
   Including Light Cyan and Light Magenta 6 color inks print excellent light tones
 and sleek gradations.
   7 color inks including White color print vivid jobs with high precision clear
 edges in various ways.
   The white and varnish can be printed with Lc, Lm, YMCK inks simultaneously
 to expose flashy and attractive images for distinctive applications by
 printing the varnish layer.













WHITE INK PRINT VARIANTS





IMPLEMENTATIONS OVER-PRINTING UNDER-PRINTING
 White ink at the area of image



 White ink at the area of job



 Colors and white ink individually
 White ink and colors individually















PRINT HEADS







High resolution and high-quality piezo electric printheads can achieve excellent production performance and vivid bright colors with variable dots technology.















INK CURING SYSTEM







Ink curing system operates with water-cooled LED UV lamps with 3 power levels which has long life time, more silent operation and more suitable for printings on sensitive

materials like Light Box fabric, etc. or printings with varnish application. Excluding the use of VOC (Volatile Organic Compounds) the UV curable ink is environmental

friendly and has no bad smell. Dreawer-type UV lamp cassette makes easy to replace the UV lamp when needed.















MEDIA TRANSFER SYSTEM







Dual roller for easy loading and transmissioning the media smootly. The positioning ring keeps madia properly. The maximum material width is 520cm.















WINDING ROLLER







Industrial take up & feeding system with 2 front, 2 rear durable and long lasting rubber rolls to open and wrap material before and after printing. Equiped with potentiometer to

adjust the tension level of the releasing and winding rollers during material changes. The rollers are able to forward and reverse thanks to speed and rotation direction controller.

Air compressor connection is required to operate the system.















MAGNETIC GUIDE RAIL







Equipped with Japanese THK silent double guide rail with X axial metal raster and beltless magnetic system which ensures straight carriage moving to achieve accurate printing.

















PRINTHEAD TRANSPORT SYSTEM







Thanks to the high-precision impact sensors on both sides of the head transport mechanism, the print heads are not damaged from curled, swollen or surged materials.

The mechanism has anti-static devices to prevent electrostatic effect that disrupts the image quality.

















INK SUPPLY UNIT







Automatic high-volume Ink Supply system ensures continuous printing. The white ink has automatic stirring and circulation system, which avoids the clog of the white printhead.

The system continuously circulates the ink between the print head and white ink tank. The ink negative pressure system control panels on the head transport mechanism

for white and colors to ensure continuous and stable negative pressure. Each sub in tank have independent heating devices for easy adjust and control the temperature.

The ink sensors warn user when the level gets low.















DIRECT PRINTING







Can print on up to 1-2mm thick flexible medias. The maximum roll media weight is 180kg. Equiped with LED light box to observe the print quality and status.















ONYX RIP SOFTWARE







ONYX RIP Center software provides the control and simplicity needed to get started in wide format print production and achive consistent high-quality output.

The versatile tools in ONYX RIP Center software make it easy to prepare jobs and produce sellable prints faster.





With advanced RIP technology, the user can get smooth gradients, vivid images and sharp small size text. The ICC color management workflow provides vibrant and bright colors.

SPECIFICATIONS




 General Information
 Model  DOCAN R5200
 Category  UV Roll-to-Roll Printer
 Printing Size  520cm.
 Printing
 Printing Technology  Drop-on-demand piezo electric inkjet. Variable Drop Technology with minimum drop size of 3,5pL
 Printing Heads  KM-1024i 6-13pL , Ricoh Gen5 7pL , Kyocera KJ4A 3,5pL
 Printhead Control  Printhead temperature and voltage are adjustable in software
 Ink Type  UV curable Ink
 Ink Reservoir  Refillable on the fly while printing / 2000ml
 Rip Software  PhotoPrint, ONYX and optionally Caldera
 Color Management  ICC based colors, curves adjustment, density adjustment
 File Format  Tiff, Jpeg, Postscript, Eps, Pdf
 Media Thickness  1-7mm.
 Roll Weight  up to 150kg.
 Head Options  KM-1024i 6-13pL  Ricoh Gen5 7pL                       Kyocera KJ4A 3,5pL
 Resolution  4-16pcs  4-7pcs                                2-8pcs
 720 x 720 dpi  600 x 600 dpi                             604 x 600 dpi
 720 x 1080 dpi  600 x 900 dpi                            604 x 1800 dpi
 720 x 1440 dpi                              604 x 1200 dpi
 Printing Speed / per hour
 Print Head Quantity  16 heads  4 heads  8 heads + White  8 heads  YMCK
 Production Mode  4 pass 70 sqm   4 pass 22 sqm   4 pass 73 sqm   4 pass   120 sqm
 Quality Mode  6 pass 50 sqm   6 pass 16 sqm   6 pass 48 sqm   6 pass  70 sqm
 High Quality Mode  8 pass 40 sqm   8 pass 11 sqm   8 pass 38 sqm   8 pass  60 sqm
 Print Colors  4 colors (YMCK),  6 colors (Lc Lm YMCK). White and Varnish are optionals
 Drying System  Mercury UV Lamp with three power levels. Led UV Lamp is optional
 Medias
 Flexible Medias  Paper, banners, wall paper, leather, Mesh, faux leather, self-adhesive vinyl, One Way Vision, etc.
 Outdoor Life of Finished Printing
   3 years ( using Docan ink )
 Dimensions and Weight
 Dimensions   805 x 200 x 216cm.  Plywood packaged size:  Iron frame base. No wood pack.
 Weight  7150kg.
 Operation
 Power Supply  50/60Hz 220V(10%)>30A
 Operation Environment  20°C to 28°C
 Humidity  40% to 60%
 Connectivity  High speed USB 3.0
 Warranty
   2 year limited warranty
